Authentication System

Requirements​

Functional​

  • Signup
  • login
  • logout
  • session management (long lived sessions)
  • Will support single device login first
  • only support username based auth no (Oauth and google login)

Non Functional​

  • Secure
  • Scalable to Millions of users
  • Availability

Estimation​

  • DAU -> 1 Million

Traffic​

  • QPS -> 1 Million / 24 hr = 12
  • But we will see that most traffic comes in peak hour, so if peak hour is 4Hr then
  • Peak QPS -> 75 QPS
  • We will design to handle the 100+ QPS

Storage​

  • 1 user store
    • userid : 16 byte
    • email/username: 50 bytes
    • hashes pass: 60 bytes
    • other metadat: 100 bytes
  • So in total 200 bytes
  • Full - 1 million x 200 = 200 MB
  • On top session storage can also take like 1 token (512 bytes) * 1 M = 512 MB

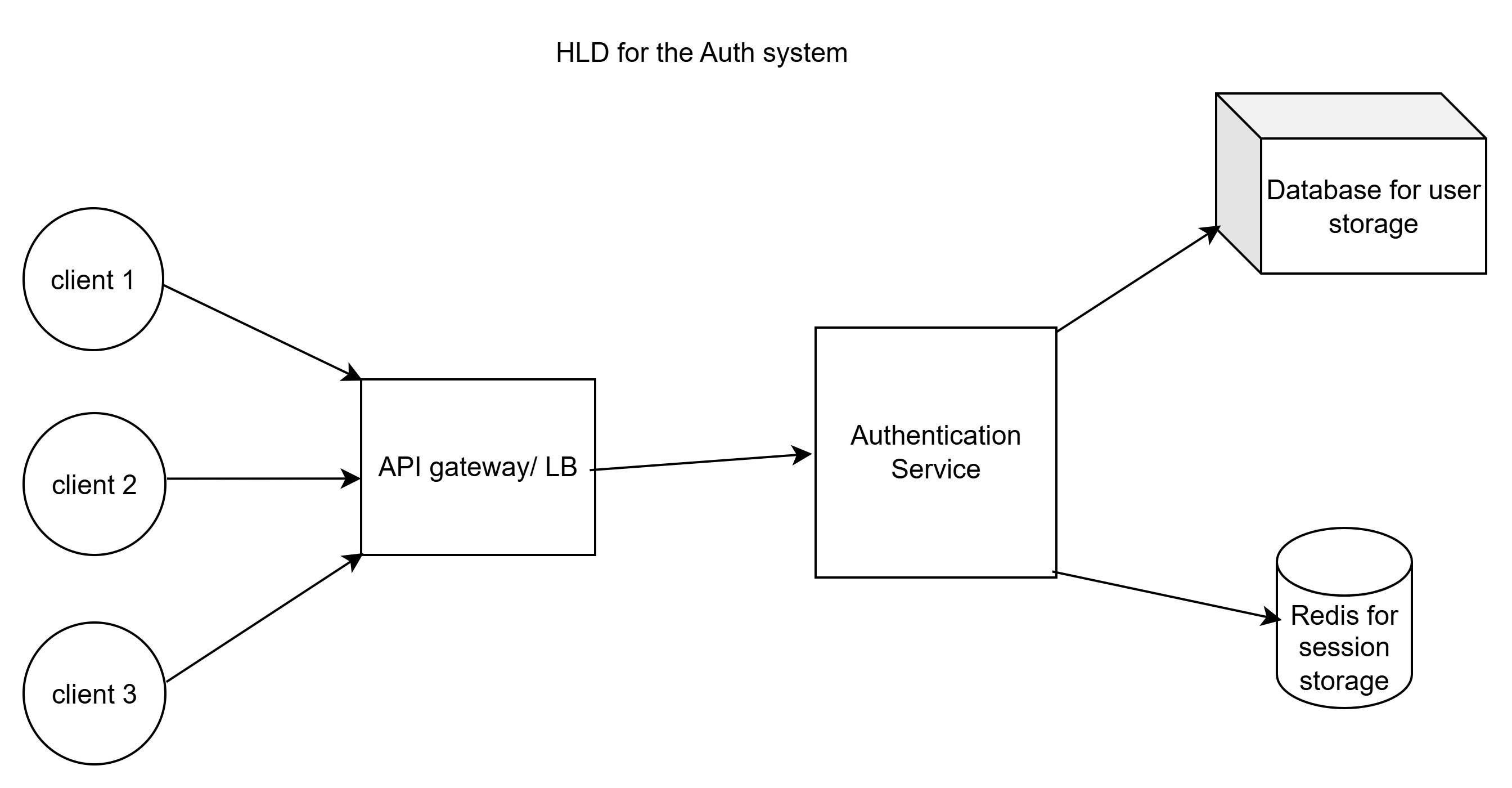

High level design​

API gateway / Load balancer​

  • Mainly used to rate limit, route request to correct pod

Auth Service​

  • Handles login of the user
  • Singup of the user
  • Encrypt (using bcrpt or crpto with good salt) the password and store it in DB
  • Logout as well (remove session)
  • Allows only unique emails/usernames

Database (SQL)​

  • Stores user data like email, username and password
  • Auth service call it to verify the entered password during login

Redis DB​

  • This is used to store the sessions which are active
  • redis is chosen over normal DB as it has auto expiry TTL option so no need to manually delete Session after expiry and also redis is fast
  • TTL can be inactivity bases (LRU)

DB Design​

API Design​

POST /signup​

  • pass email and password
  • if email not present create and entry in DB, store hash encrpted password

POST /login​

  • pass email and password
  • if validated
    • create a session entry in redis
    • return sessiontoken back to client
  • client will store returned token in local storage and send in subsequent request to be validated

POST /logout​

  • accepts session token in auth headers
  • if validated token then remove token from redis and logout user
  • after token removal if user call api again service will return 401

GET /me​

  • get logged in user details
  • accepts session token in auth headers

Security​

  • No CSRF issue as we will not be passing token in cookies, token will be stored in local storage client side
  • Session token can not be guesses as it is generated using UUID
  • Use HTTPS so data can not be read
  • Login endpoint can be called brute force to fix this
    • we already have rate limiting on the API gateway
    • we will block a account for certain period if suspicious calls made
  • Token leakage not possible as token will be passed in auth headers
  • XSS will be handled on frontend side

Scalability​

  • As our usecase is not much write heavy so we need read heavy read replicas
  • Rate limit based on IP

Failure Handeling​

  • If redis fails what to do
    • if redis fails we can retry
    • another extra level solution can be, we make a replica of redis like data in DB as well and fallback to DB in case of redis failure
  • If DB fails
    • return clear 503 error

Availability​

For high availability we can do lot of things

  • run multiple instance of auth service (Horizontal scaling)
  • have DB backup and replica (master - slave)
  • Each service is stateless so can expand without issue and dependency
