Communication

HTTP

1. HTTP is a method for encoding and transporting data between a client and a server. It is a request/response protocol: clients issue requests and servers issue responses with relevant content and completion status info about the request.
2. HTTP is an application layer protocol relying on lower-level protocols such as TCP and UDP.

Verb	Description	Idempotent*	Safe	Cacheable
GET	Reads a resource	Yes	Yes	Yes
POST	Creates a resource or trigger a process that handles data	No	No	Yes if response contains freshness info
PUT	Creates or replace a resource	Yes	No	No
PATCH	Partially updates a resource	No	No	Yes if response contains freshness info
DELETE	Deletes a resource	Yes	No	No

*Can be called many times without different outcomes.

HTTP/1.1 vs HTTP/2 vs HTTP/3

Feature	HTTP/1.1	HTTP/2	HTTP/3 (QUIC)
Transport	TCP	TCP	QUIC (UDP)
Multiplexing	❌ No (One request per connection)	✅ Yes (Multiple requests in one connection)	✅ Yes (No TCP limitations)
HOL Blocking	❌ Yes (Request-level)	❌ Yes (TCP-level)	✅ No (QUIC eliminates it)
Connection Setup	Slow (Multiple round trips)	Faster	Fastest (0-RTT)
TLS	Optional	Optional	Mandatory (TLS 1.3)
Ideal for	Legacy systems, basic websites	Modern web apps & APIs	Low-latency apps (Streaming, Gaming, VoIP)
Adoption	Still supported, but outdated	Standard for web apps	Growing (Google, Cloudflare, Facebook)

Transmission control protocol (TCP)

1. It is a connection oriented protocol. Connection is established and terminated using a handshake.
2. All packets are guaranteed to reach destination in original order by
   1. Checksum
   2. Acknowledgement
3. If sender does not get correct response then it will resend packets
4. All these guarantees causes delays in TCP communication Use TCP over UDP when:
   1. You need all of the data to arrive intact
   2. You want to automatically make a best estimate use of the network throughput

User datagram protocol (UDP)

1. UDP is connectionless. Datagrams (analogous to packets) are guaranteed only at the datagram level. Datagrams might reach their destination out of order or not at all. UDP does not support congestion control. Without the guarantees that TCP support, UDP is generally more efficient.
2. UDP is less reliable but works well in real time use cases such as VoIP, video chat, streaming, and realtime multiplayer games.
3. Use UDP over TCP when:
   1. You need the lowest latency
   2. Late data is worse than loss of data
   3. You want to implement your own error correction

Remote Procedure Call (RPC)

1. RPC focuses on calling functions (procedures) on a remote server, like calling a local function in code. It is more action-oriented than REST.
2. RPC abstracts the complexity of the communication process, allowing developers to focus on the logic of the procedure.
3. Key Characteristics
   1. Action oriented
   2. Function calls - It allows you to call functions or method directly on a remote server. The client sends a reuest to execute a specific method and server returns the result.
   3. Synchronous Communication - Client wait for the server to complete the called procedure.
   4. Variety of Protocols - RPC can be implemented using different protocols, such as JSON-RPC, XML-RPC, or gRPC.
   5. Interface Definition Language - RPC system often used an IDL to define the interface between client and server.
4. Advantages
   1. High Performance
   2. Simpler to implement when need to perform specific actions
   3. More flexible in handeling complex which do not fit CRUD model
5. Disadvantages
   1. Tight coupling of client and server
   2. Less standardization
   3. Limited Tooling

Representational state transfer (REST)

1. It is an architectural style for designing networked applications.
2. Key Characteristics
   1. Stateless
   2. Resource oriented - REST treats everything as a resource, such as users, products, or orders. Each resource is identified by a unique URL.
   3. Leverages Standard HTTP methods
   4. Follow client server architecture
   5. Cacheable - REST response can be cached
3. Advantages
   1. Scalability
   2. Flexibility - Allows different data formats likes JSON, XML or plaintext
   3. Standardization - follow a standarized approcah that makes them easy to understand
   4. Wide Adoption
4. Disadvantages
   1. Verbosity - when dealing with complex objects or relationships can be verbose
   2. Over-fetching/Under-fetching
   3. Inefficient for real-time applications (websockets and gRPC are better)

Google Remote Procedure Call(gRPC)

1. gRPC is a high-performance, open-source RPC framework that uses Protocol Buffers (Protobuf) for communication instead of JSON. It supports streaming and is widely used in microservices.
2. Advantages
   1. Fast & Efficient – Uses Protobuf (binary format) instead of JSON, reducing payload size.
   2. Streaming Support – Supports real-time communication (unlike REST).
   3. Strong Typing – Uses .proto files for schema definition
   4. Great for Microservices – Optimized for inter-service communication
3. Disadvantages
   1. Not Human-Readable – Protobuf is binary, making debugging harder.
   2. More Complex Setup – Requires defining .proto files and generating client/server code.
   3. Limited Browser Support – Requires a gRPC-web proxy to work in web applications.

GraphQL

1. GraphQL is a query language that allows clients to request exactly the data they need, avoiding over-fetching and under-fetching.
2. Advantage
   1. No over/under fetching
   2. Strog typing
   3. Single endpoint
   4. flexible queries - can fetch multiple related resources in one request
3. Disadvantages
   1. Complex to learn anf more setup than REST
   2. Caching is harder
   3. Increased server load (as we fetch all data from DB , only we dont send it to client)

Comparison

Feature	REST	RPC	GraphQL	gRPC
Data Structure	Resource-based (nouns)	Function-based (verbs)	Query-based	Function-based
Communication	HTTP (JSON/XML)	HTTP (JSON)	HTTP (JSON)	HTTP/2 (Protobuf)
Performance	Medium	Medium	Medium-High	High (Binary)
Over-fetching	Yes	Yes	No	No
Under-fetching	Yes	Yes	No	No
Streaming Support	No	No	No	Yes
Caching	Easy (HTTP Caching)	Hard	Hard	Hard
Best Use Case	Web APIs, Public APIs	Simple actions, Internal APIs	Client-driven APIs	Microservices, High-performance APIs

Websockets

1. It enables full-duplex, bidirectional communication between a client over a single TCP connection.

Working

1. Handshake
   1. The client initiates connection request using HTTP GET with and upgrade header set to websocket
   2. if server support ws and accepts the request, it responds with a special 101 statud code, indicating protocol will be changed to websocket.
2. Connection
   1. Once handshake complete, the ws connection is established, connection will remain open untill it is closed by either the client and server.
3. Data transfer
   1. Both the client and server now sends message in realtime. these messages are sent in small packets called frames, and carry minimal overhead compared to HTTP.
4. Closure
   1. closed by with a close frame.

Usecase

1. Real time collaboration tools
2. Real time chat apps
3. Live notifications
4. Multiplayer online game
5. Live streaming

Challenges and Considerations

1. Some Proxy server don't support WS, and some firewall can also block.
2. There should be a fallback implemented in case if client or network don't support WS. fallback mechanism can be long-polling.
3. Need to secure by authentication and secure ws connection(wss://).

Long Polling

Polling

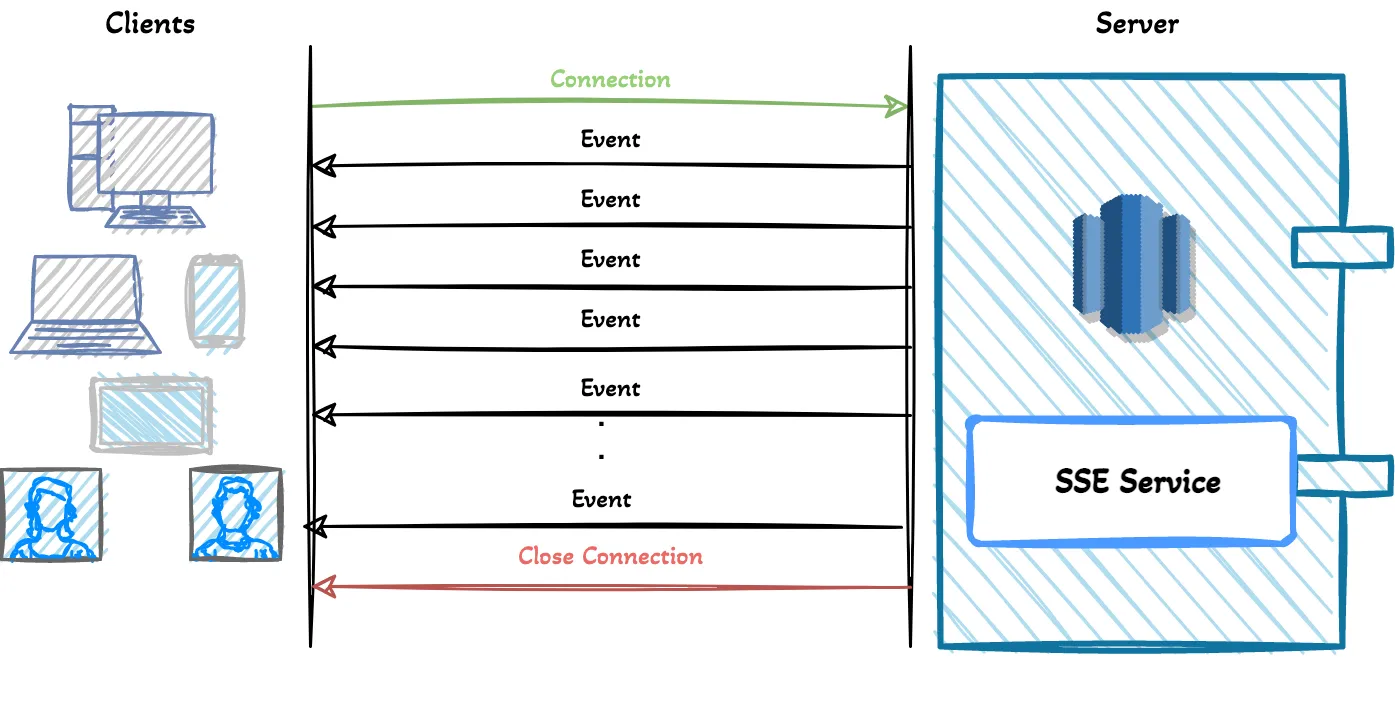

Server Sent Events (SSE)

1. It allows server to send un-directional messages/events to client over HTTP.
2. SSE is a technology that provides asynchronous communication with event stream from server to the client over HTTP for web applications. The server can send un-directional messages/events to the client and can update the client asynchronously. Almost every browser is supporting the SSE except Internet Explorer.

Working

1. The server-sent events streaming can be started by the client’s GET request to Server.

   GET /api/v1/live-scores
   Accept: text/event-stream
   Cache-Control: no-cache
   Connection: keep-alive

2. Accept: text/event-stream indicates the client waiting for event stream from the server, Cache-Control: no-cache indicates that disabling the caching and Connection: keep-alive indicates the persistent connection. This request will give us an open connection which we are going to use to fetch updates. After the connection, the server can send messages when the events are ready to send by the server. The important thing is that events are text messages in UTF-8 encoding.
3. List of pre-defined SSE field names include:
   1. event: the event type defined by application
   2. data: the data field for the event or message.
   3. retry: The browser attempts to reconnect to the resource after a defined time when the connection is lost or closed.
   4. id: id for each event/message

Usecase

1. E-commerce Projects (notify whenever the user needs the information)
2. Tracking system
3. Alarm/Alert Projects
4. IoT Projects (Alarm, notify, events, rules, actions)
5. Stock Markets (Bitcoin etc.)
6. Breaking news, Sports Score Updates
7. Delivery projects
8. In-app notifications

Challenges and Considerations

1. One potential downside of using Server-Sent Events is the limitations in data format. Since SSE is restricted to transporting UTF-8 messages, binary data is not supported.
2. When not used over HTTP/2, another limitation is the restricted number of concurrent connections per browser. With only six concurrent open SSE connections allowed at any given time, opening multiple tabs with SSE connections can become a bottleneck.
   1. In HTTP/1.1, each SSE connection requires a separate TCP connection because there is no built-in multiplexing. However, HTTP/2 solves this by allowing multiple independent streams over a single TCP connection.

WebSocket vs. SSE vs. Long Polling vs. Polling

Feature	WebSocket	SSE (Server-Sent Events)	Long Polling	Polling
Communication Type	Full-duplex (bidirectional)	Unidirectional (server to client)	Half-duplex (client-initiated)	Half-duplex (client-initiated)
Latency	Very low	Low	Medium	High
Efficiency	High (single persistent connection)	High (single persistent connection)	Medium (delayed responses)	Low (frequent requests)
Connection Overhead	Single handshake, then persistent	Single HTTP connection (kept open)	New request for each update	New request for each update
Server Load	Low	Low (compared to polling)	Higher than SSE/WebSockets	Very high
Client Requests	One per session	One per session	Multiple but less frequent	Frequent requests
Multiplexing (HTTP/2)	Yes	Yes (multiple streams possible)	No	No
Best Use Cases	Real-time apps (chats, games, live updates)	Notifications, live data feeds	Notifications, moderate real-time needs	Basic periodic updates
Scalability	High	High	Moderate	Low
