📚 Database Indexes

Indexes improve query performance by allowing databases to locate rows faster without scanning every record.

---

🧩 What is a Database Index?

An index is a data structure that helps locate rows quickly based on column values, similar to a book index.

Without an index → Full table scan (O(n)) With an index → Tree or hash lookup (O(log n) or O(1))

---

🧠 Common Index Data Structures

Type	Used By	Description	Time Complexity
B-Tree / B+ Tree	MySQL, Postgres	Balanced tree keeping keys sorted	O(log n)
Hash Index	Postgres, Redis	Hash table for exact matches	O(1)
Bitmap Index	ClickHouse, Oracle	Bit arrays for low-cardinality data	Bit ops
Inverted Index	ElasticSearch	Term → document mapping	O(log n)
GeoSpatial index	Spatial databases	Multi-dimensional data (2D/3D)	-
GiST / GIN / SP-GiST	PostgreSQL	Specialized trees for complex data	varies
Clustered Index	MySQL (InnoDB)	Data physically ordered by key	O(log n)
Non-Clustered Index	Most RDBMS	Separate index pointing to data	O(log n)
Global Sec. Index (GSI)	NoSQL (DynamoDB, Cassandra)	Replicated, separately partitioned data index	O(1) or O(log n)
Local Sec. Index (LSI)	NoSQL (DynamoDB)	Index sharing the main partition key with a new sort key	O(1) or O(log n)

---

🔍 Index Types and Use Cases

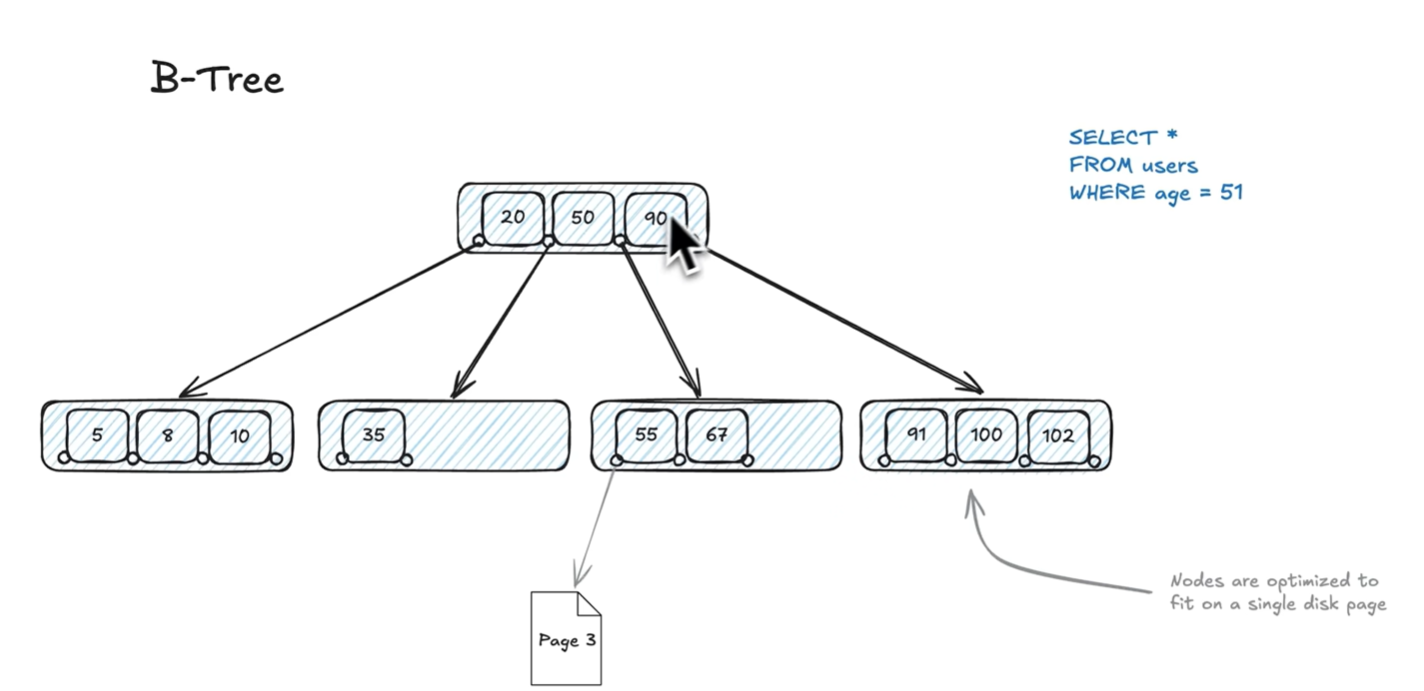

1. B+ Tree Index

• Use case: Range queries (>, <, BETWEEN), sorting, prefix match.
• Tech: Balanced tree, keys in internal nodes, data in leaf nodes.
• Used by: MySQL, Postgres (default).

---

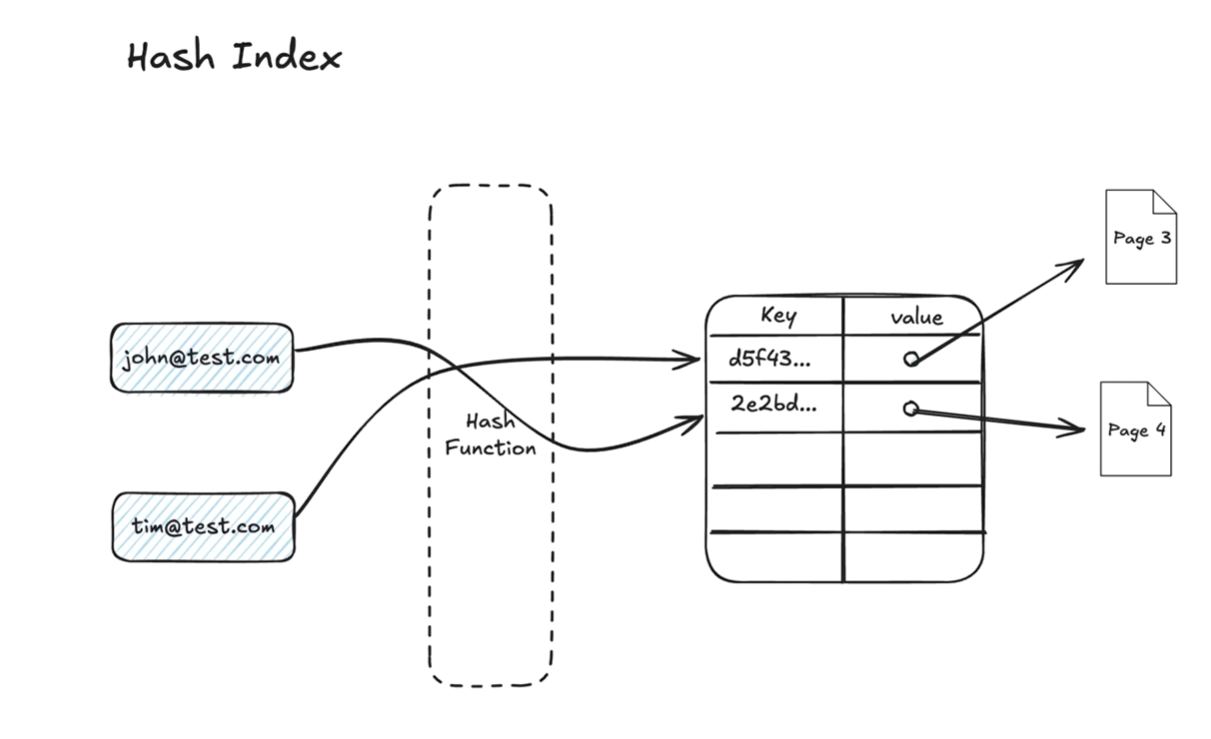

2. Hash Index

• Use case: Exact match (=) lookups.
• Tech: Hash table mapping key → row pointer.
• Limitation: Not suitable for range queries.

3. Bitmap Index

• Use case: Low-cardinality columns like gender, status.
• Tech: Bit vectors for each unique value; uses bitwise ops for filtering.
• Used by: Analytics DBs like Oracle, ClickHouse.

---

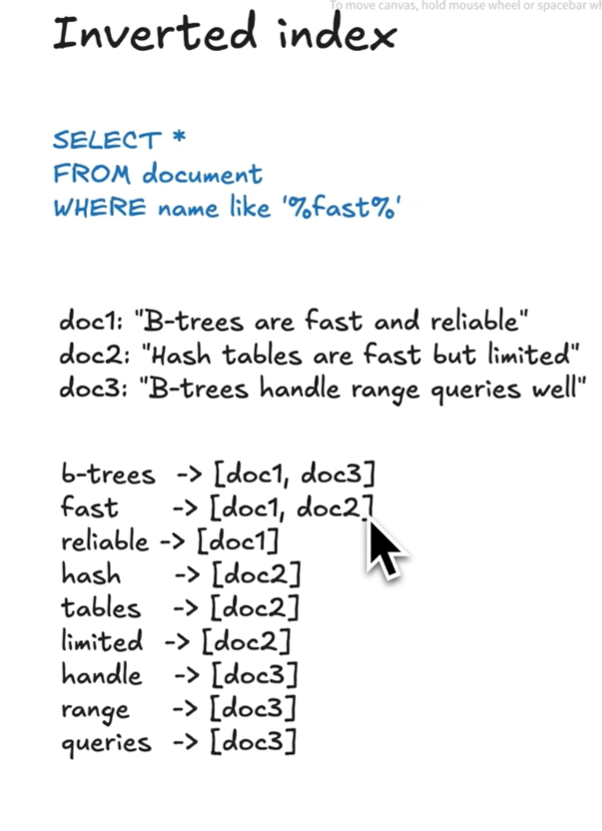

4. Inverted Index

• Use case: Full-text search, tokenized matching.
• Tech: Maps terms → list of document IDs containing them.
• Used by: Elasticsearch, Solr.

---

5. Geospatial Index

• Use case: Spatial/geolocation queries.
• Tech: Bounding rectangles to group nearby coordinates.
• Types:

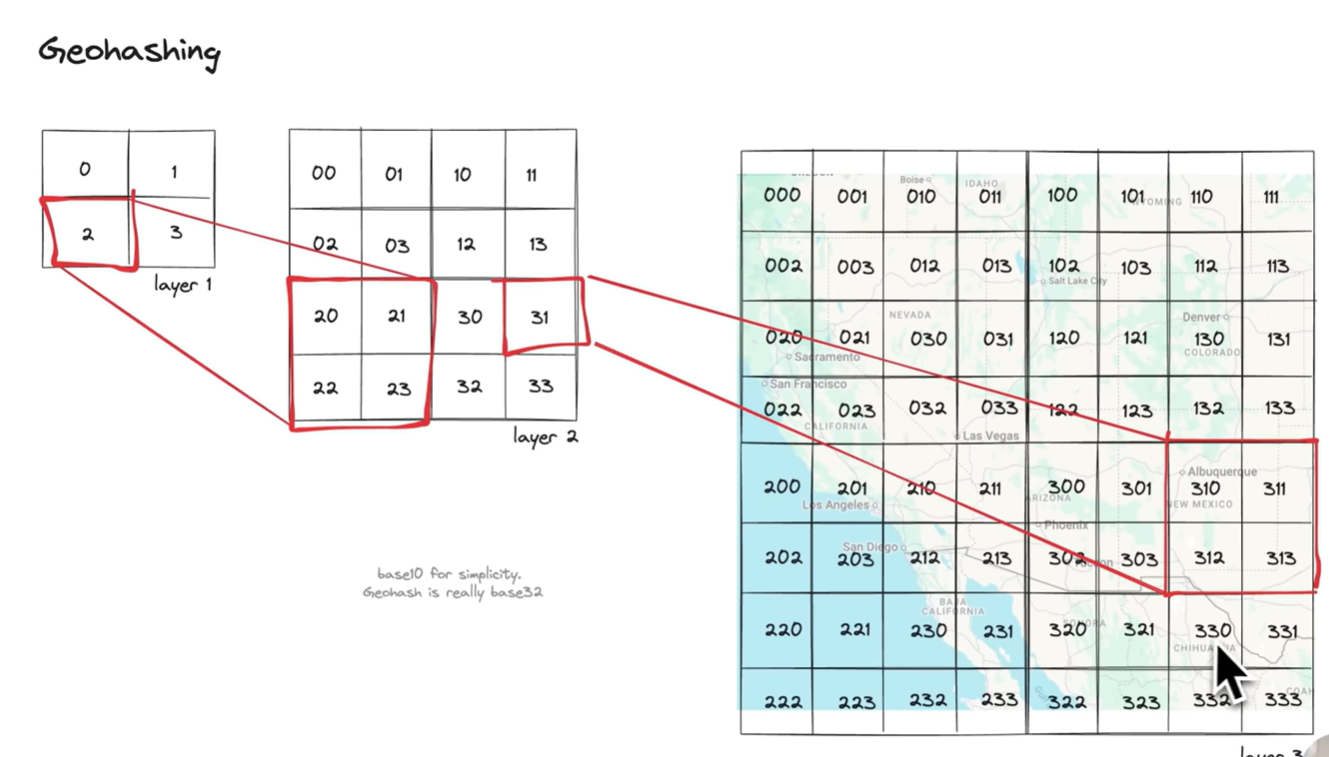

  • GeoHashing
  • Quad Tree
  • R Tree

6. GiST / GIN / SP-GiST (PostgreSQL)

Type	Use Case	Description
GiST	Ranges, geometric, fuzzy matching	Extensible balanced tree
GIN	Full-text search, JSONB keys	Multi-value indexing
SP-GiST	IP ranges, quadtrees	Space-partitioned indexing

---

7. Clustered vs Non-Clustered Index

Type	Description	Example
Clustered	Data physically ordered by index key (only one allowed).	Primary key in InnoDB
Non-Clustered	Separate structure pointing to data (many allowed).	Secondary indexes

---

8. Distributed & NoSQL Indexes (GSI and LSI)

Distributed systems partition (shard) data across separate physical nodes using a Partition Key to scale horizontally. Standard single-server indexing "pointer maps" fail here because following a pointer would require slow, unpredictable inter-node network hops.

Global Secondary Index (GSI)

• Use case: Querying distributed tables using non-primary keys (e.g., finding a user by email instead of user_id) without performing an expensive all-node scan.
• Tech: Full Table Replication. A completely separate shadow table is stood up, partitioned by the new secondary key field.
• Behavior: Main table writes asynchronously propagate to the GSI table via background event streams, making GSIs eventually consistent.
• Used by: DynamoDB, Cassandra, ScyllaDB (and conceptually simulated via manual Lookup Tables or Sharding tools like Vitess/Citus in relational SQL environments).

Local Secondary Index (LSI)

• Use case: Sorting or filtering alternate fields within a specific partition container.
• Tech: Local Pointer Map. It must share the exact same Partition Key as the parent table but registers a different Sort Key.
• Behavior: Stored locally on the exact same physical node as the main partition row data, enabling strongly consistent reads without cross-network penalties.

---

📊 Summary Table

Index Type	Use Case	Pros	Cons
B+ Tree	Range queries	Balanced, ordered	Slower for exact match
Hash	Exact match	Fast lookup	No range, rehash overhead
Bitmap	Low-cardinality	Fast filters	Bad for frequent writes
Inverted	Full-text	Fast search	Large space
GiST/GIN/SP-GiST	Specialized	Versatile	Higher write cost
Clustered	Primary key	Fast range reads	Table reorder costly
Non-Clustered	Secondary	Multiple allowed	Extra I/O hop
GSI (Global)	Distributed Non-PK Lookup	Fast single-node cross queries	Asynchronous / Eventual consistency, extra storage, dual write cost
LSI (Local)	Alternate Sort inside a Shard	Strong consistency, localized storage	Limited to the same partition boundary

---

💡 Key Takeaways

• Indexes speed up reads but slow down writes.
• Choose index type based on query pattern:
  • Equality → Hash
  • Range → B+ Tree
  • Analytics → Bitmap
  • Full-text → Inverted
  • Spatial → GeoHashing / Quad Tree / R Tree
  • Distributed NoSQL (Cross-Node Lookup) → GSI
  • Distributed NoSQL (Intra-Node Sort) → LSI

---

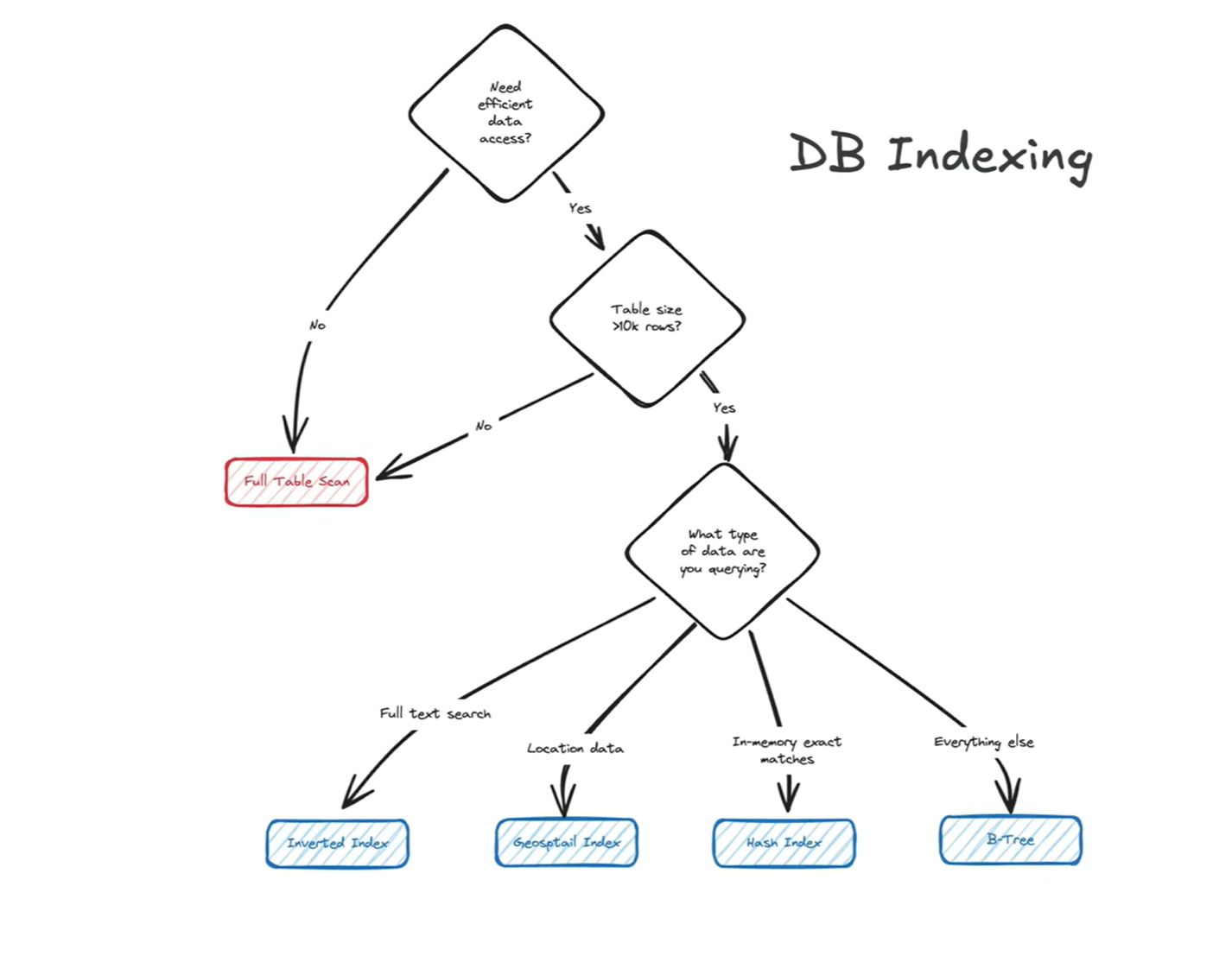

Quick decision making
